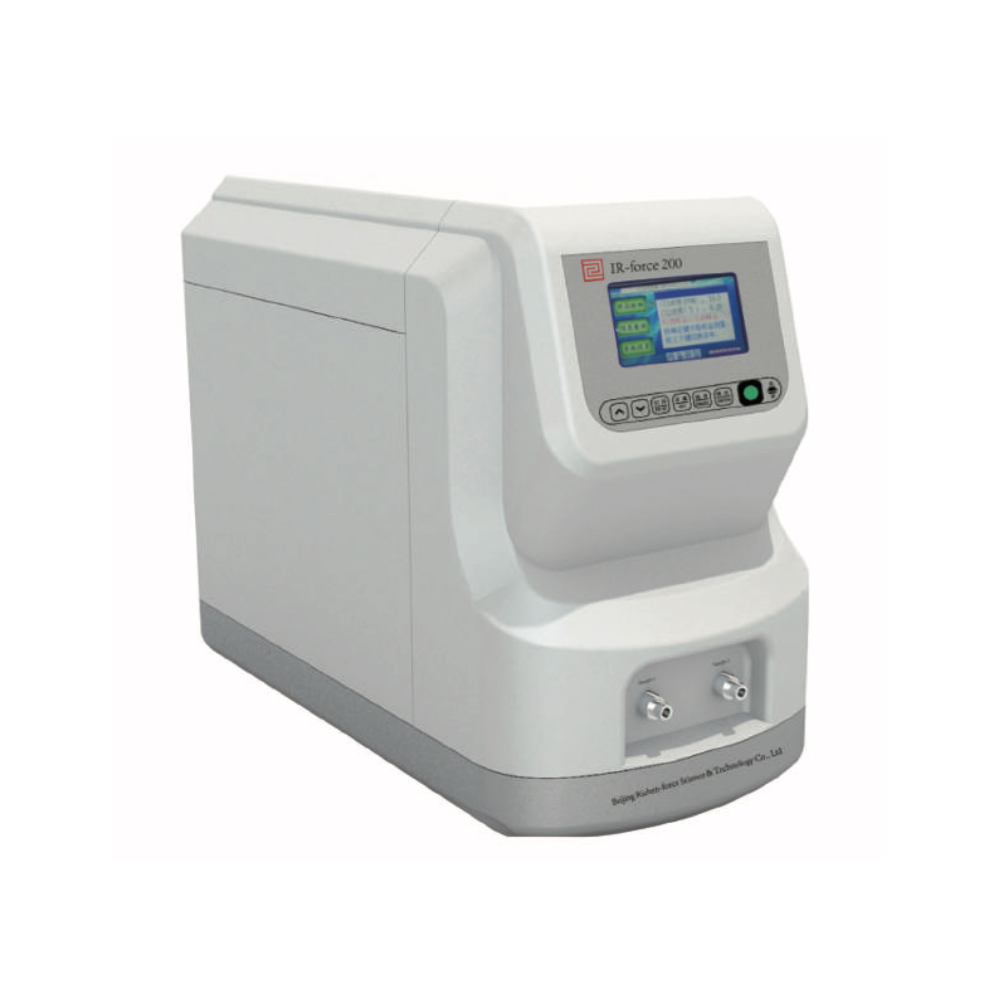

Infrared Spectrometer series 200

01 Overview

IR Force 200 is an instrument targeted to the needs of professionals and health sector operators and is designed to guarantee an efficient and rapid response in the diagnosis of infections of the gastrointestinal apparatus.
Its modest dimensions and its sophisticated system of analysis and reporting represent the best choice for the user, guaranteeing value for money and an elevated quality/price ratio associated with an optimal performance for small and medium routines.
The instrument is user-friendly and does not require specialised personnel for its use.

02 Product Description

IR Force 200 is a state of the art analyser of great versatility and comes in a compact all-in-one format. In fact, this instrument does not require any further accessories as the colour touch screen, the IR analysis module and the computer are internally integrated.

The instrument, thanks to its reduced dimensions, can be positioned anywhere in a studio or laboratory and can be configured with a 2 workstation reader unit that allows the analysis of a 13C Urea Breath Test in just a few minutes.

The engineering experience of the RICHEN MEDICA SCIENCE group developed over many years has brought this infrared system within the means of every professional, giving them special integrated sensors NDIR for the measurement of the isotopic rapport 12C / 13C in samples of breath tests following the administration of a marked substrate 13C.

The instrument is easy to install and does not require maintenance. IR Force 200 has a high rate of accuracy (< 0.3 6 %0 13C) and an optimal steadfastness of execution, assisted by the exclusive system of reading controlled by a special integrated thermometer that stabilises the temperature maintaining it constant.

IR Force 200 possesses an integrated internal calibrator and does not require cylinders, thereby allowing a reading in under 2 minutes for samples of breath tests of 120 ml in aluminium bags.

The software allows the user a constant monitoring of all the operations and functionalities. The system is equipped with an automatic recording and patient analysis results procedure.

03 Main Characteristics

  1. Compact and space-saving system
  2. Backlit display
  3. Simple and intuitive management system
  4. No extraordinary maintenance
  5. RS232 output for PC connection
  6. Additional software for reporting and storing patient data
  7. Auto check for voltage evaluation on 12c / 13c
  8. Automatic calibration and without additional costs through exhalation with CO2 at 5% of the operator
  9. Built-in micro-printer
  10. Two-channel sampling (time 0 - time 30)
  11. Response within 3 minutes
  12. Report with DOB + result (positive / negative) on thermal paper
  13. Report in A4 format if connected to software
  14. Ability to translate software into the required language
  15. Possibility to add 2-digit decimals to the display
  16. Anti-condensation bell
  17. Possibility to add decrals to 2-digit software pc
  18. Possibility to display percentage of C02 on PC software
  19. Display possibility of DELTA0 and DELTA30 display
  20. Ability to view DELTA 0 and DELTA 30 PC software
  21. Does not require dedicated personnel
  22. No limit of daily test execution
  23. Automatic air circuit cleaning with each test
  24. Back filter for CO2 and condensate cleaning
  25. Anti-condensation bell
  26. Anti-condensation bell
  27. Anti-condensation bell
  28. Reading through aluminum bags with flexible cannula + cap (no latex)
  29. Latest generation infrared reading system (NDIR)

04 Specifications

Infrared spectrometer in non-dispersive mode (NDIR)

Producer RICHEN MEDICAL SCIENCE
Environment Room temperature: from 5 °C to 4 0 °C
Altitude: < 2000 meters above sea
Relative humidity (RH): < 80%

Dimension, weight and electric characteristics

Height mm 300
Width mm 400
Depth mm 200
Weight kg 11
Feed l00V. – 240V.AC – 50Hz
Absorbition 0,5 A
Gas All gasses are transported in the analyser by means of an integrated pump. An anti-dust filter and a C02 filter impede any type of contamination of the analyser from any type of air from the instrument.
